MOA, mils and inches: one group four ways

On this page

GroupLab project. Researched and written with Claude. Testing and data collection by the developer. Written 2026-09-22; the data is from Worked example, one simulated group, seed 2026.

What we found

nothing new, deliberately. This is a reference page. The one number people most often get wrong: a true minute of angle is 1.047 inches at 100 yards, not 1 inch. The difference is 4.7 percent, enough to matter when you compare groups or count clicks at distance.

How sure we are

these are definitions. The conversions are exact and match the constants in GroupLab's statistics code.

The data

Two kinds of unit#

Linear units (inches, millimeters, centimeters) measure the paper. A half-inch group is half an inch across, whatever the distance.

Angular units (MOA, mils) measure the angle the group covers as seen from the rifle. A 1 MOA group at 100 yards and a 1 MOA group at 500 yards are equally good shooting, even though the second is five times larger on paper. That is why angular units are the fair way to compare groups shot at different distances, and why scope adjustments are made in them.

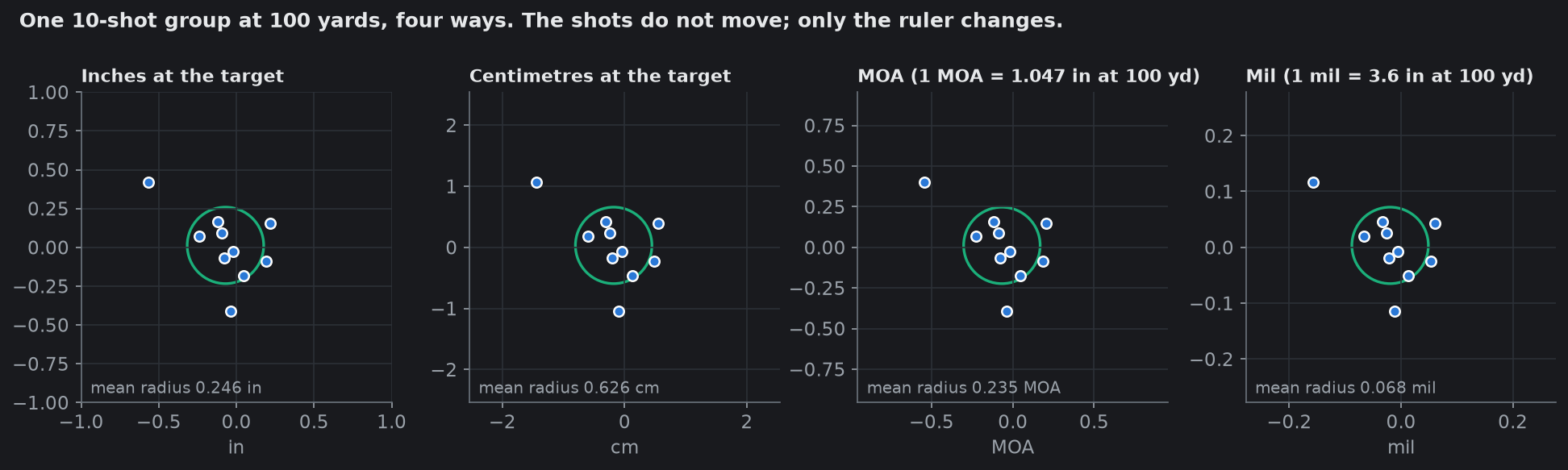

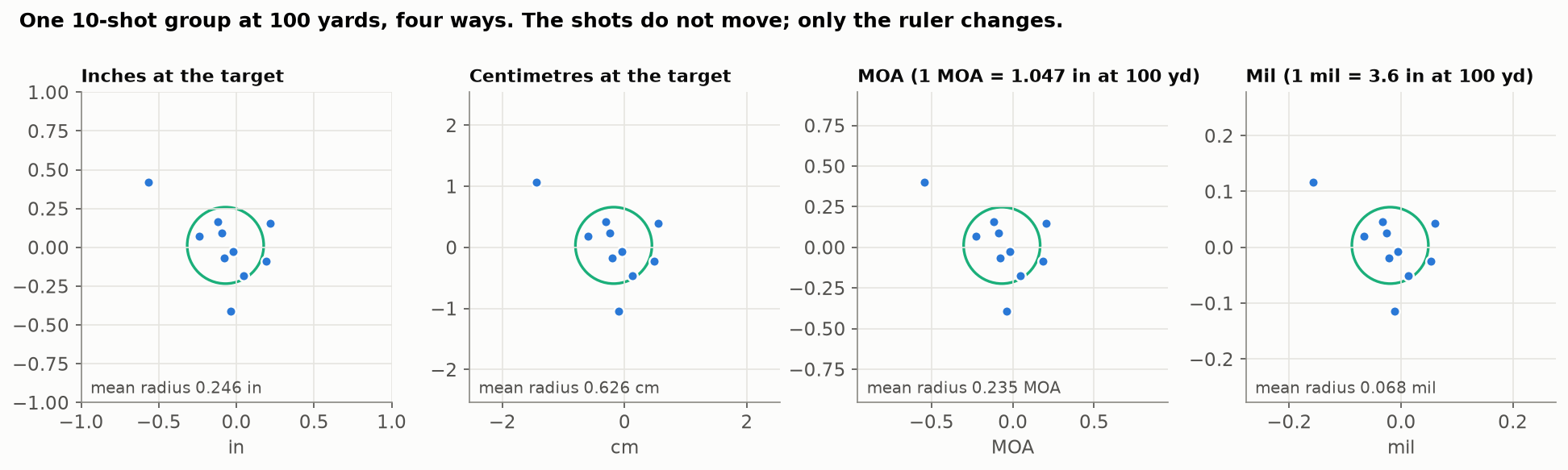

One group shown four waysOne group shown four ways

The same ten shots, measured four ways. The dots do not move. Mean radius reads 0.246 inch, 0.626 cm, 0.235 MOA or 0.068 mil.

The units#

Unit What it is Size at 100 yards Size at 100 meters
MOA (minute of angle) 1/60 of a degree 1.047 in 2.91 cm
IPHY (inches per hundred yards, "shooter's MOA") exactly 1 inch at 100 yards 1.000 in 2.78 cm
Mil (milliradian, also MRAD) 1/1000 of a radian 3.600 in 10.0 cm

A few points that trip people up:

  • MOA is not an inch. 1 MOA at 100 yards is 1.047 inches. Calling it an inch is close at 100 yards and adds up at distance: at 1,000 yards, 10 MOA is 104.7 inches, not 100.
  • "Mil" on a scope means milliradian. There is also a military "mil" used for artillery (6,400 to the circle), which is slightly different. GroupLab knows both, but when a shooter or a scope says mil, it means milliradian.
  • Mils are neat in metric. One mil is 10 centimeters at 100 meters, 1 meter at 1,000 meters. That is why mil scopes and metric distances pair so well.

What one unit covers at distance#

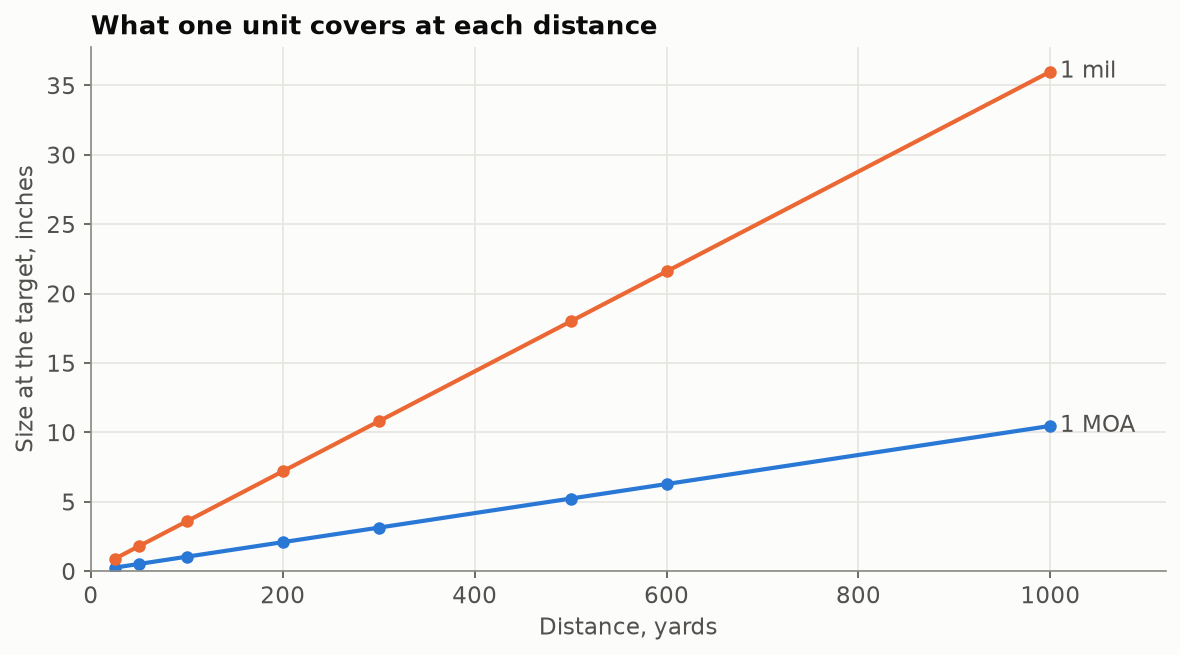

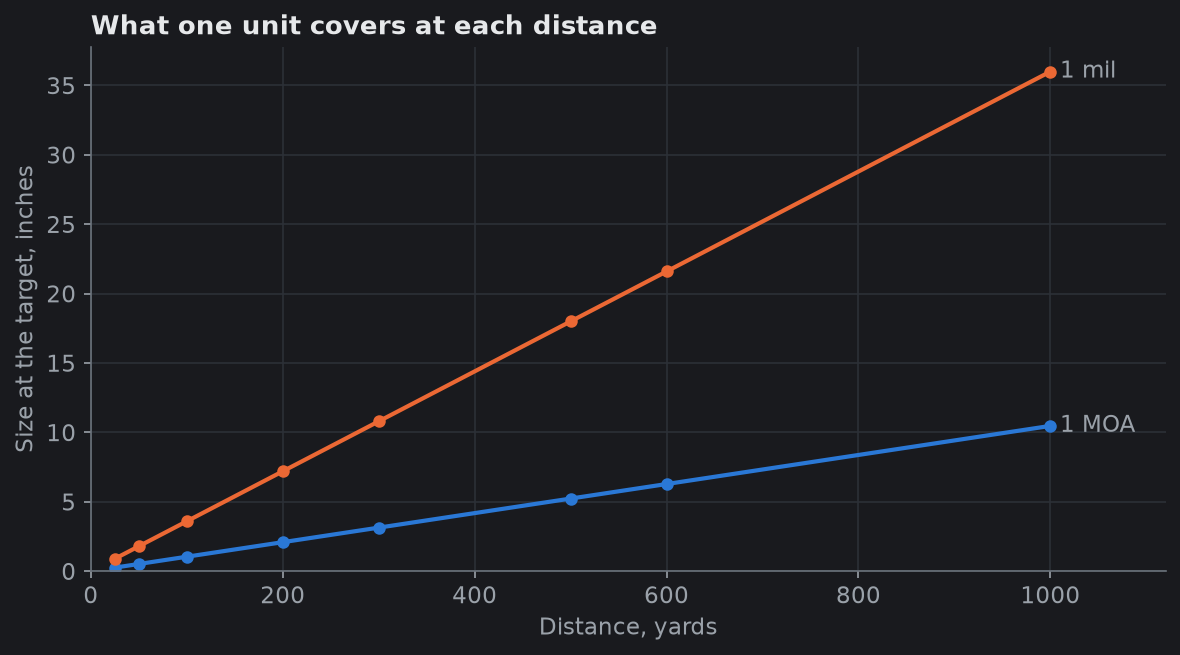

What one unit covers at each distanceWhat one unit covers at each distance

Distance 1 MOA 1 mil One 1/4 MOA click One 0.1 mil click
100 yd 1.05 in 3.60 in 0.26 in 0.36 in
200 yd 2.09 in 7.20 in 0.52 in 0.72 in
300 yd 3.14 in 10.80 in 0.79 in 1.08 in
600 yd 6.28 in 21.60 in 1.57 in 2.16 in
1,000 yd 10.47 in 36.00 in 2.62 in 3.60 in

Converting between them#

  • 1 mil = 3.438 MOA
  • 1 MOA = 0.2909 mil
  • 1 MOA = 1.047 IPHY; 1 IPHY = 0.955 MOA
  • Inches to MOA at a distance: inches divided by (1.047 times yards divided by 100)
  • Inches to mils at a distance: inches divided by (3.6 times yards divided by 100)

GroupLab does these conversions with the exact trigonometric form, not the small-angle shortcut, so that its numbers match the shotGroups package it validates against. At normal shooting distances the two agree to many decimal places; at very short distances the exact form is the correct one.

Why GroupLab asks for the distance#

An angle needs a distance. Without one, a half-inch group could be 0.5 MOA at 100 yards or 0.1 MOA at 500. So GroupLab stores everything as a real distance on the paper and only shows MOA or mil once it knows how far away the target was. With no distance, no angle is shown, only a dash where it would be, rather than a zero or a guess.

GroupLab shows sizes on the paper in inches, centimeters or millimeters and angles in your scope's unit, mil or MOA, which it asks for when it first starts; each rifle keeps its own. Its MOA is the true minute, and IPHY is offered for those who prefer it, as SMOA. Any angle can be tapped to see it in the other unit.

What this means#

A minute of angle is 1.047 inches at 100 yards, not 1 inch. The round number is a convenience that costs 4.7 percent, and 4.7 percent is enough to change which of two loads looks tighter and enough to matter when you count clicks at distance.

Where it does not matter: comparing two groups shot at the same distance in the same unit. The error cancels.

Where it does matter: anything crossing a distance or a unit. Converting a group at 300 yards to MOA, working out a correction in clicks, or comparing your figures with somebody else's. Use the real number; GroupLab does.

If these ideas are new to you, Statistics for shooters, from the beginning covers them in plain words from the start.

Sources#

  1. GroupLab statistics reference, sections 12.5 and 13 (docs/STATISTICS.md), and src/GroupLab.Core/Statistics/Angular.cs.
  2. Daniel Wollschlaeger, shotGroups R package, angular conversion functions. https://cran.r-project.org/package=shotGroups
  3. Minute and second of arc. https://en.wikipedia.org/wiki/Minute_and_second_of_arc
  4. Milliradian. https://en.wikipedia.org/wiki/Milliradian
